Ergopower Technical Manual: Page 7
(Instructions appear below the image)

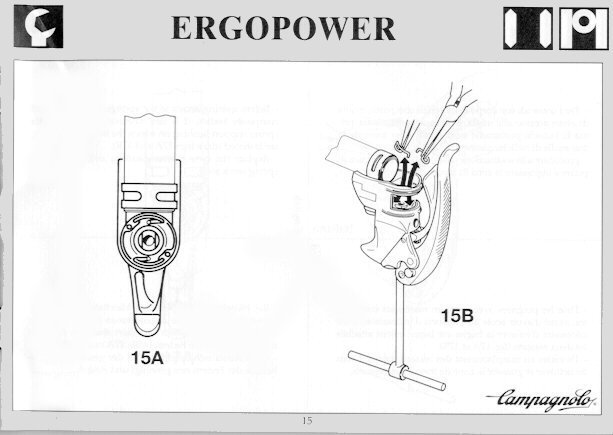

Steps 15A and 15B (Source: Campagnolo SRL)

  • For controls with an aluminum body, it is possible to gain access to the two index springs when the ring is removed (drawing 15A)
  • The springs can be removed and replaced using pliers (drawing 15B)
  • CAUTION: Before replacing, clean and grease the spring working zone again.
