Photos of our 1972 Cinelli Speciale Corsa, refinished by Joe Bell and assembled here at Campy Only World Headquarters.  Click here for photos and stories from the restoration process.

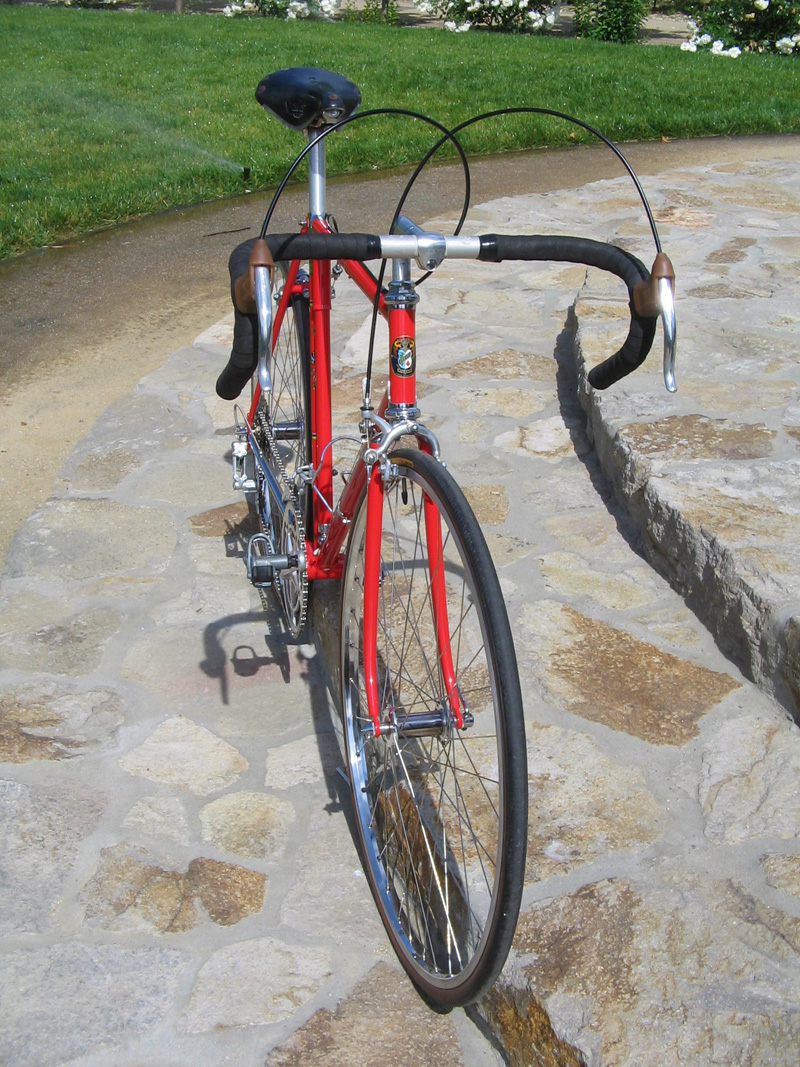

Front view

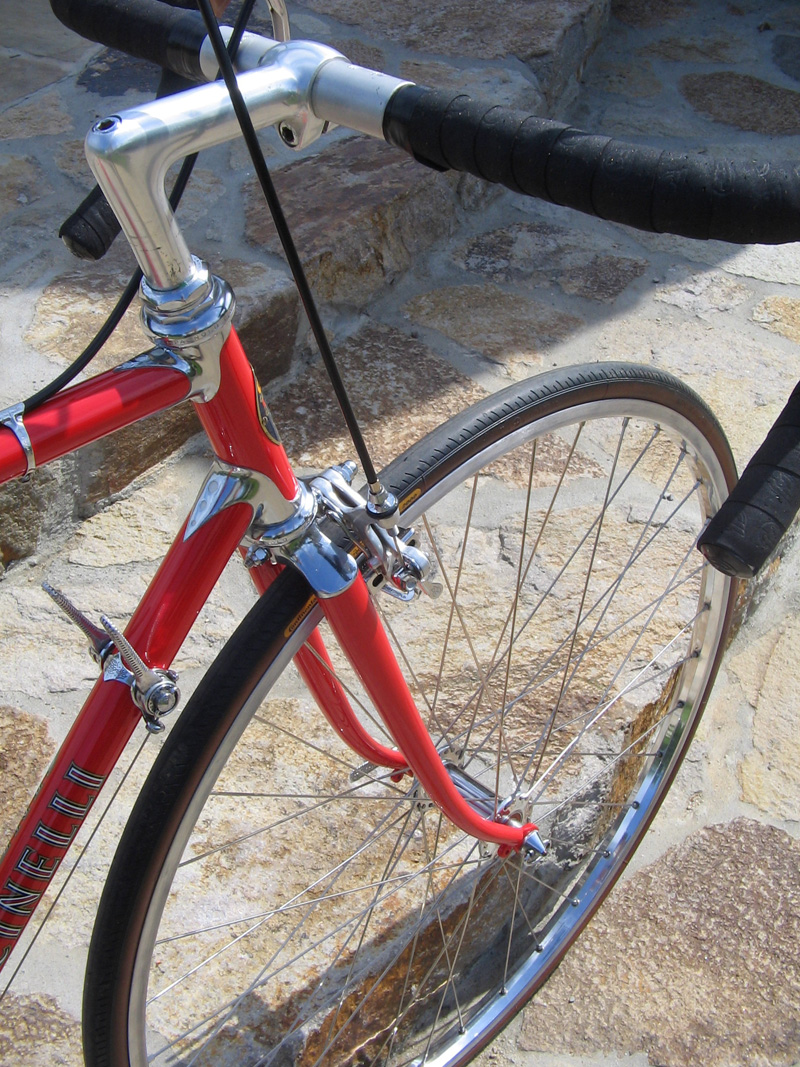

Cinelli forks are nice and beefy

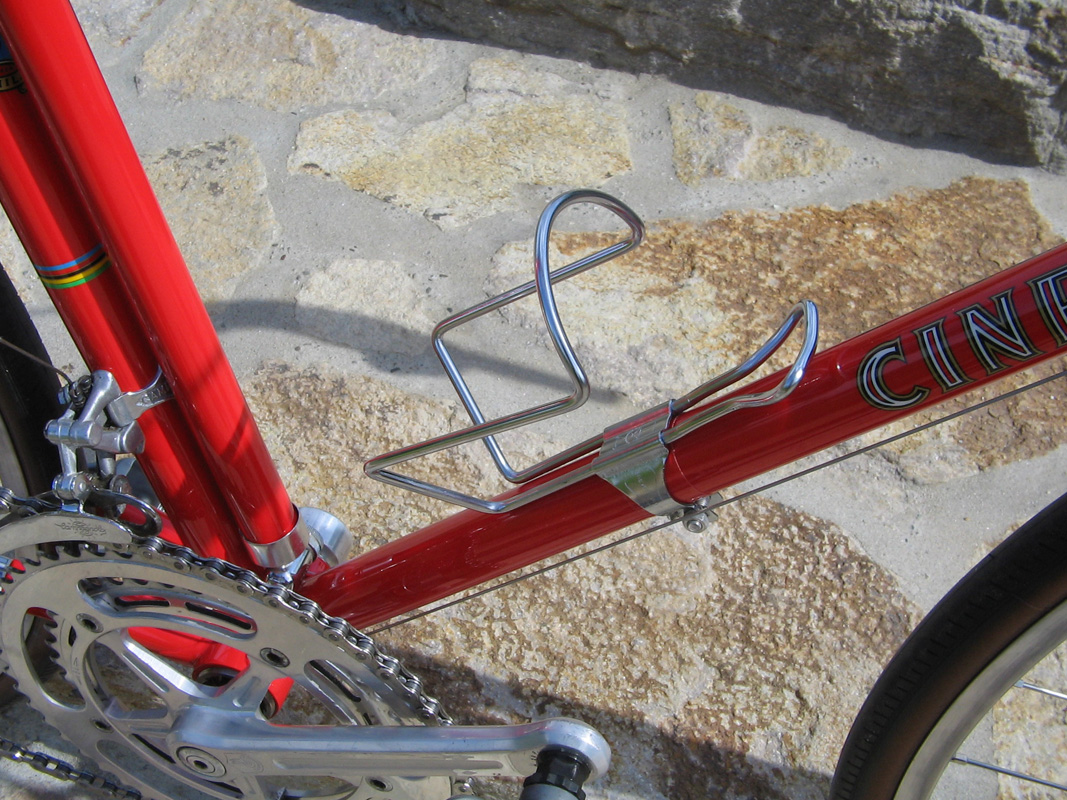

NOS TA clamp-on bottle cage.

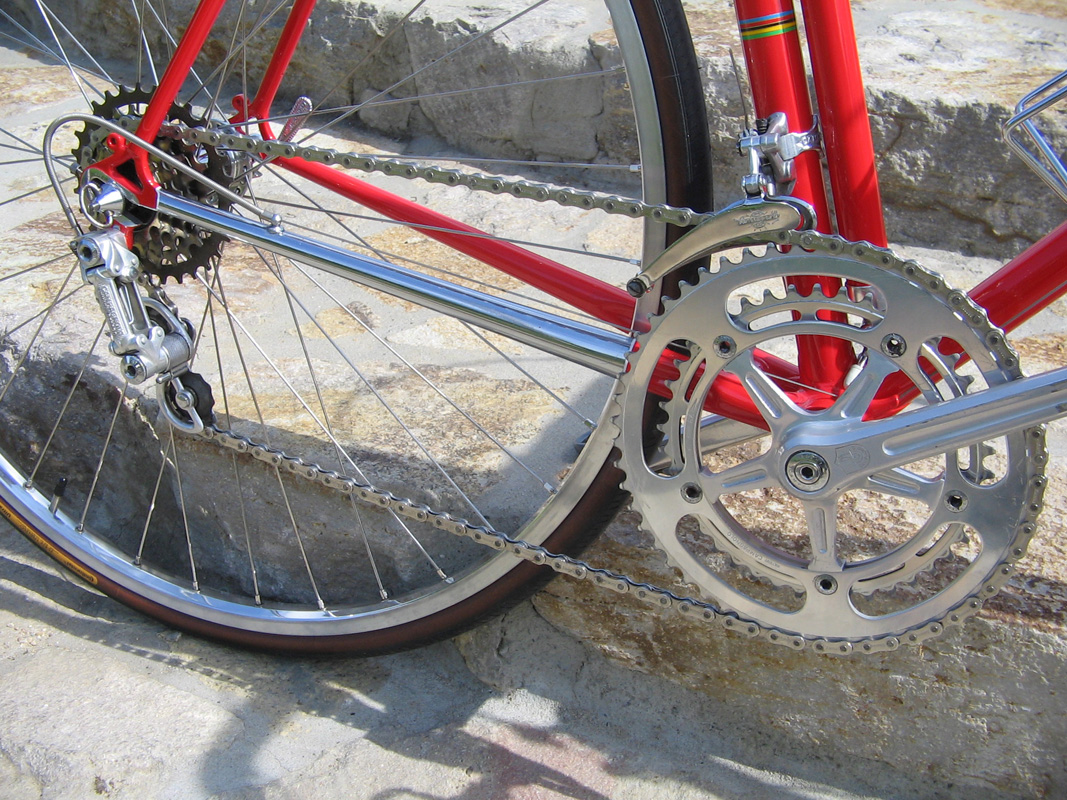

Nuovo Record drivetrain

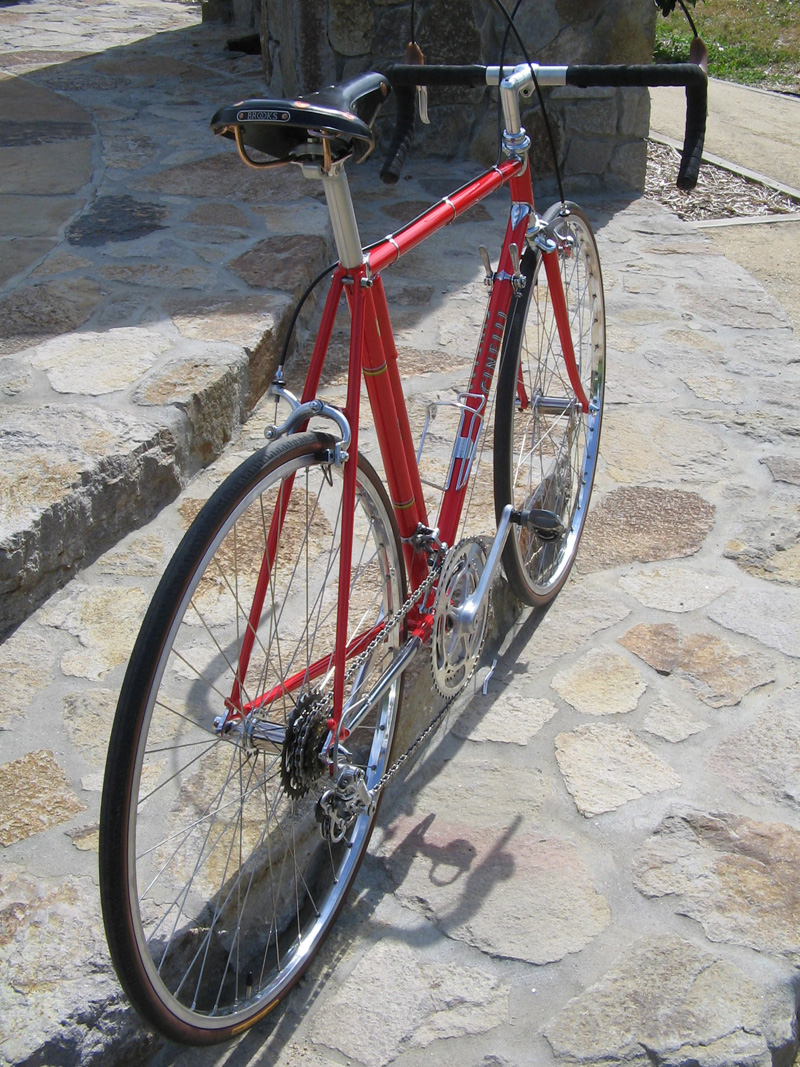

Rear view. Wheels are built on original 1971/72 Phil Wood hubs

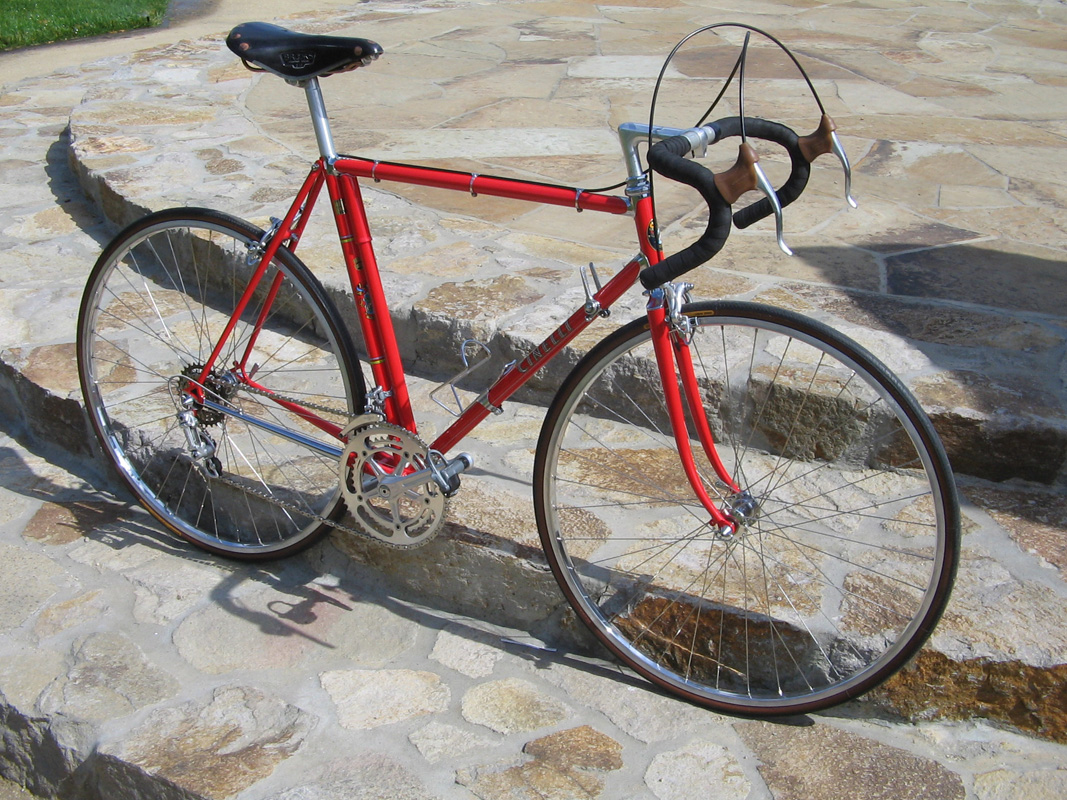

Side view

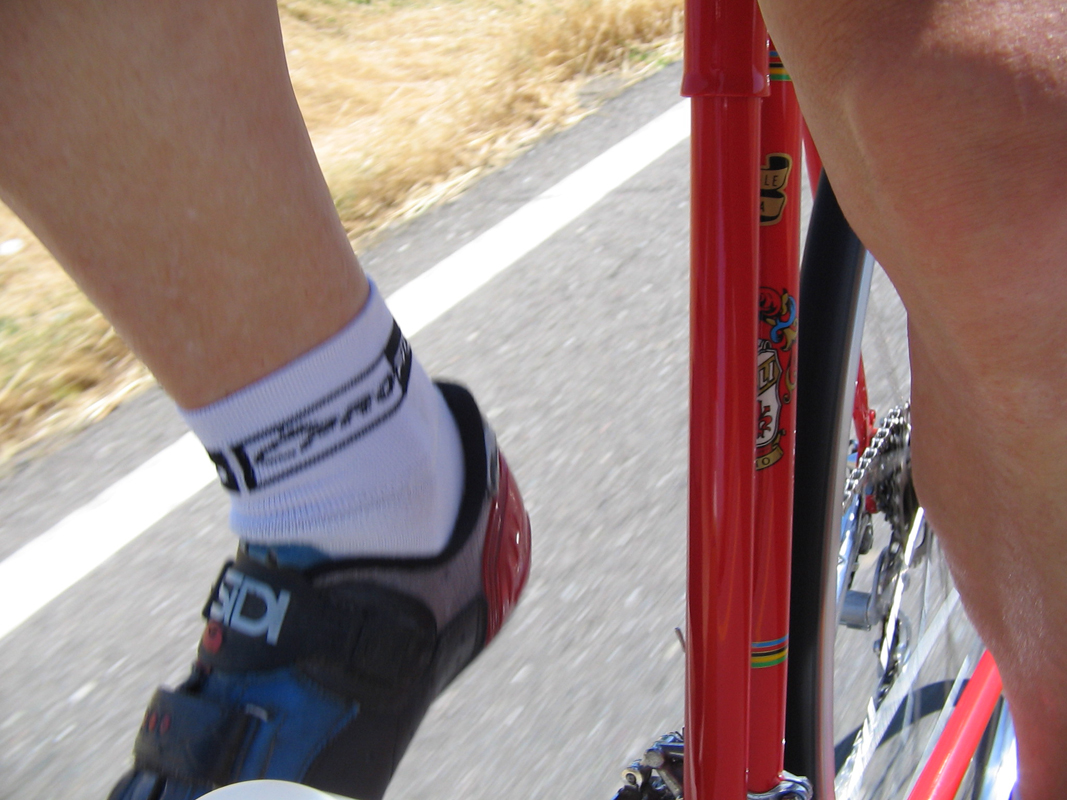

6-10-06: First action shot aboard the Cinelli

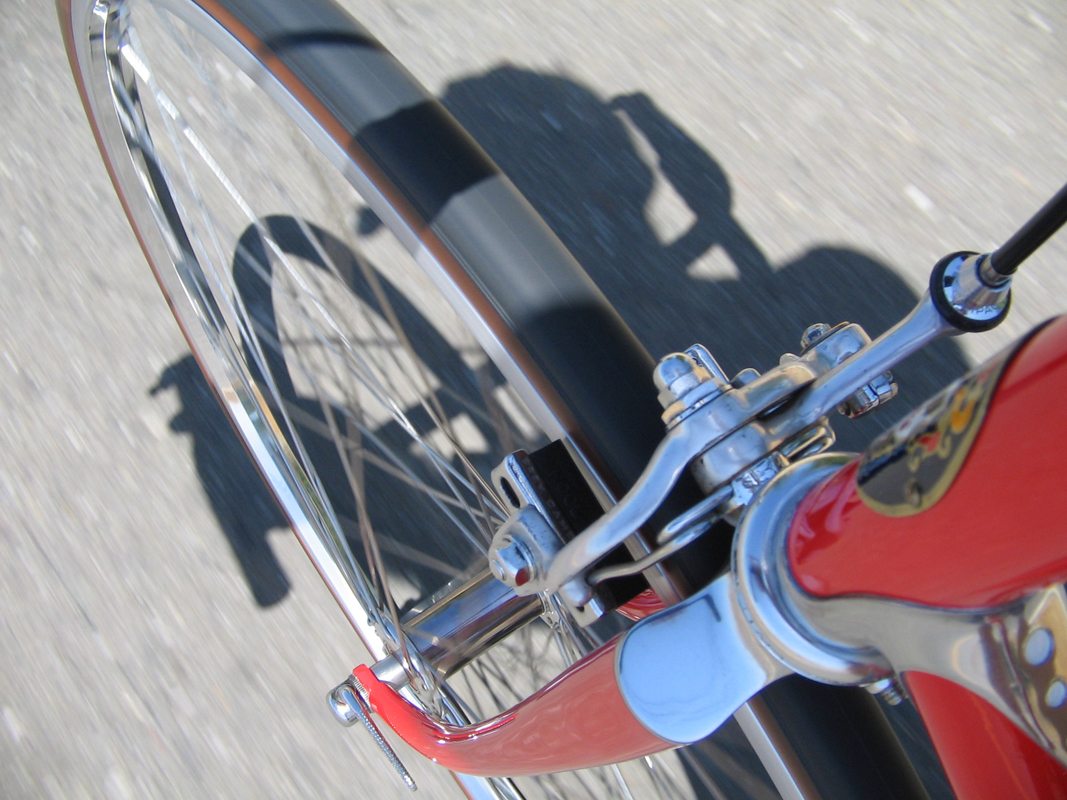

On the road

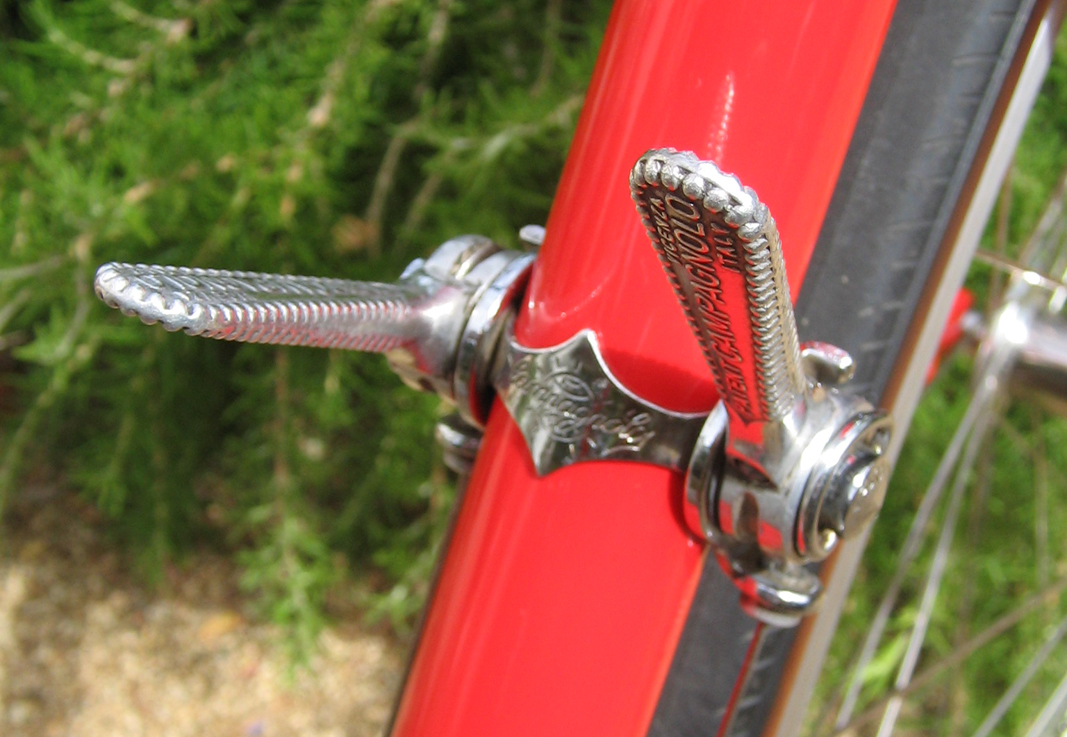

Clamp-on shifters

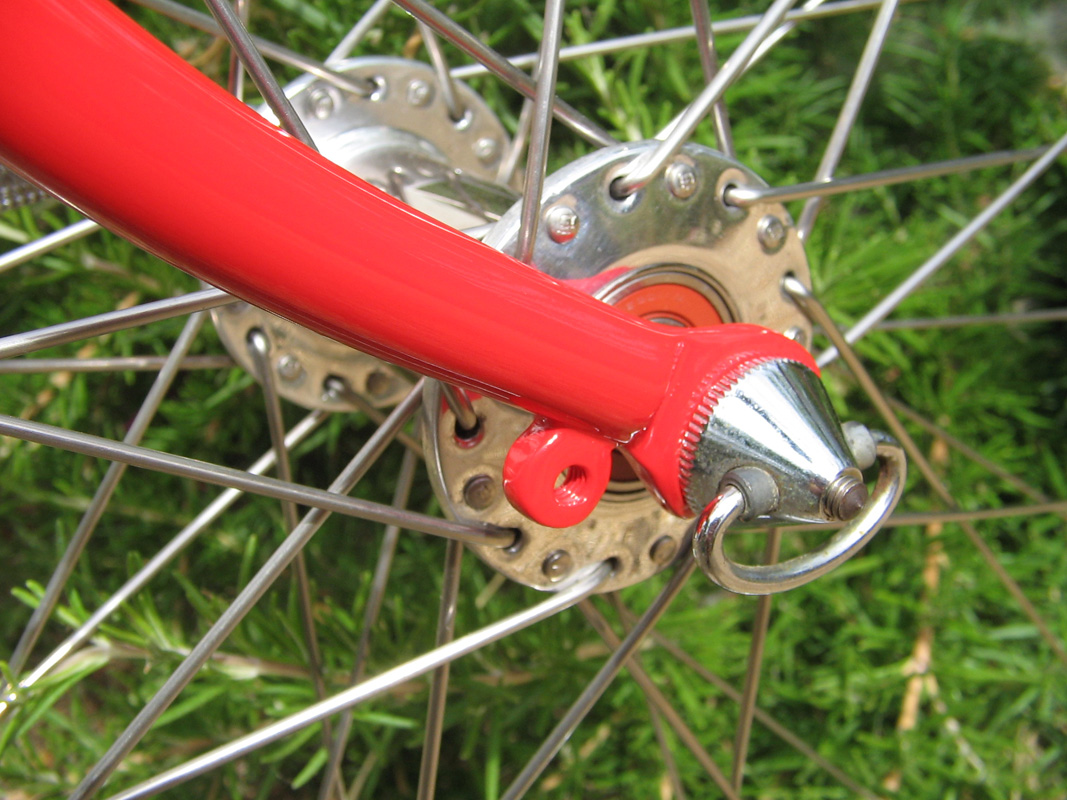

Front and rear dropouts have braze-ons for fender mounting
Click here to see a 1970 Cinelli with factor fenders

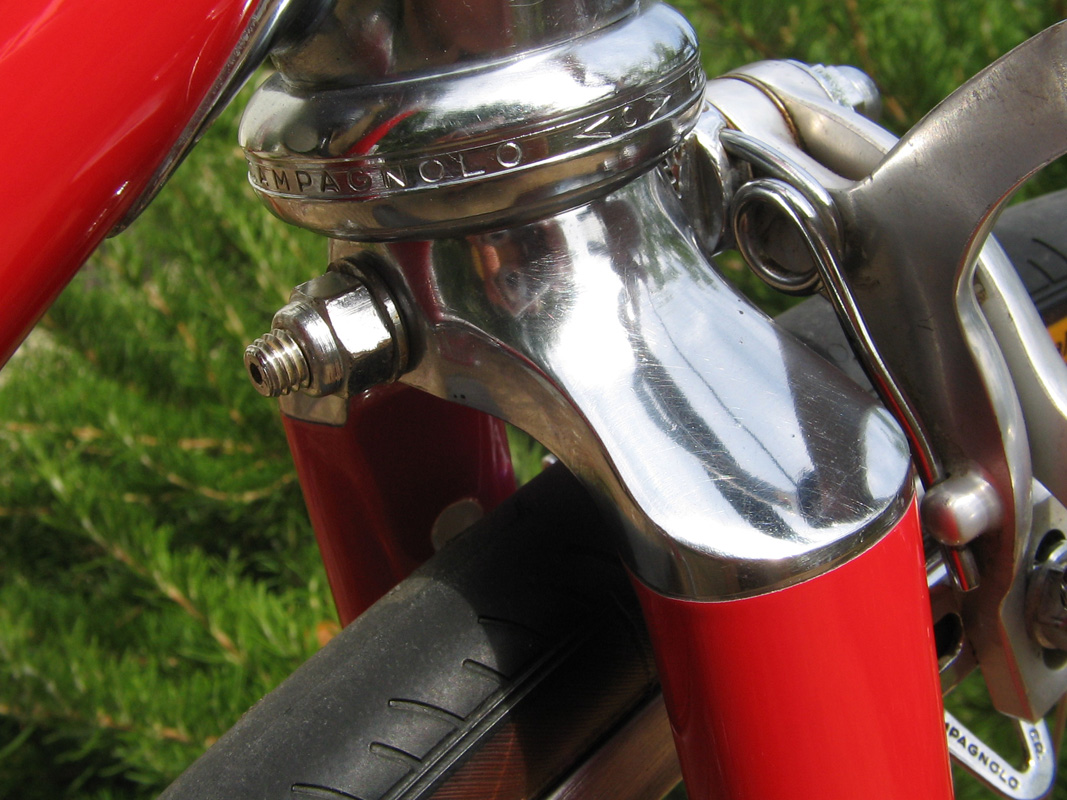

Front and rear brakes have nutted mounts (not recessed allen mounting)
Extreme close-up of the downtube decal shows the gold metalflake outlining the letters
Campagnolo crest on the top tube cable clamps
Campagnolo head on the Silca frame-fit pump. Note the top-mounted cable guides brazed on the bottom bracket
Proper flat quick release skewers. Rear dropouts also have fender braze-ons.

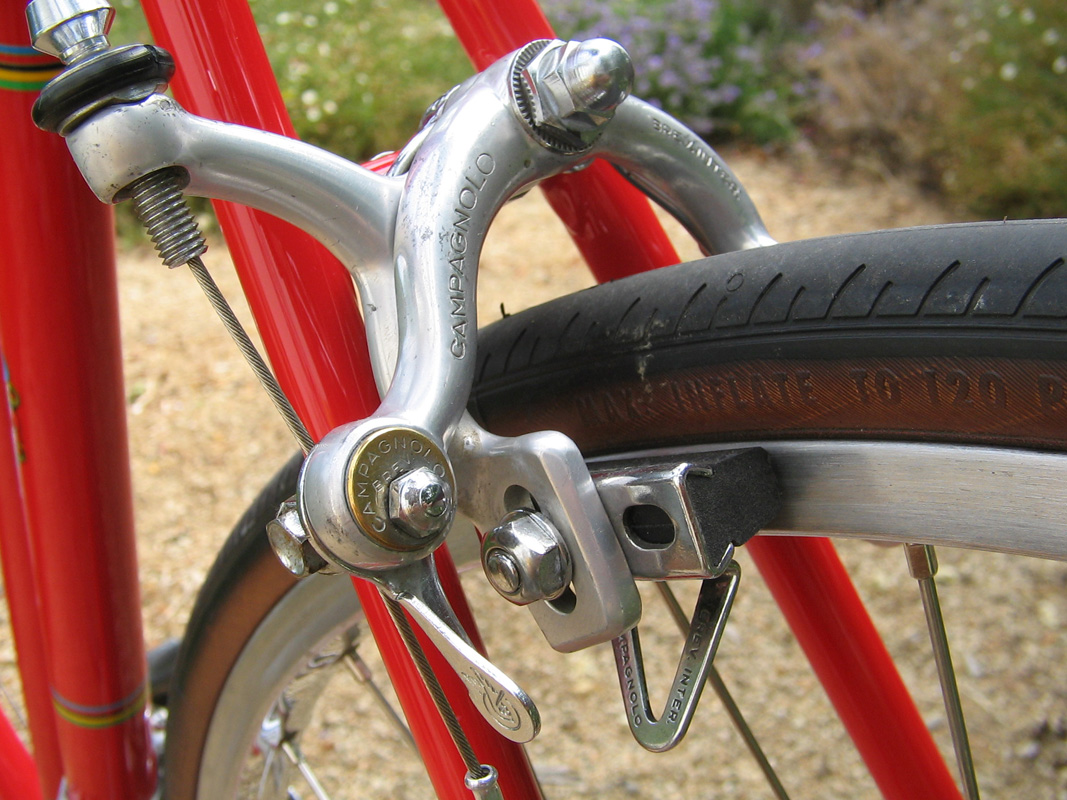

Brakes show a few blemishes, but are original to the bike. We installed new Kool Stop pads

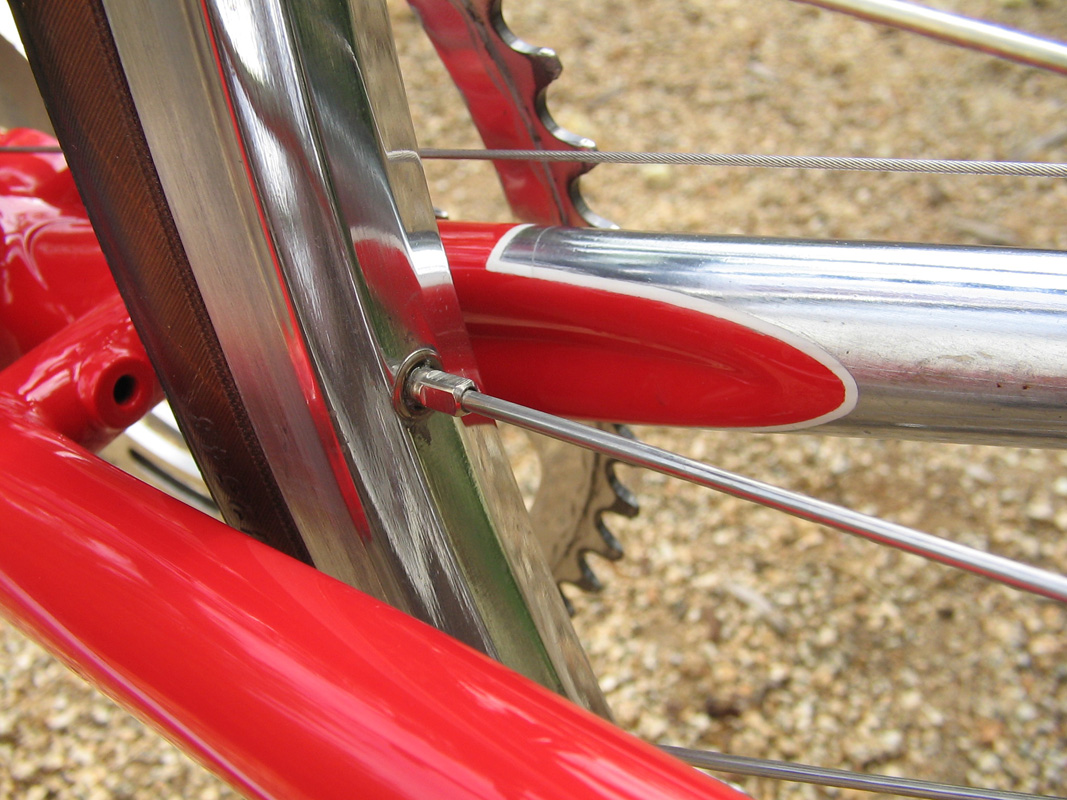

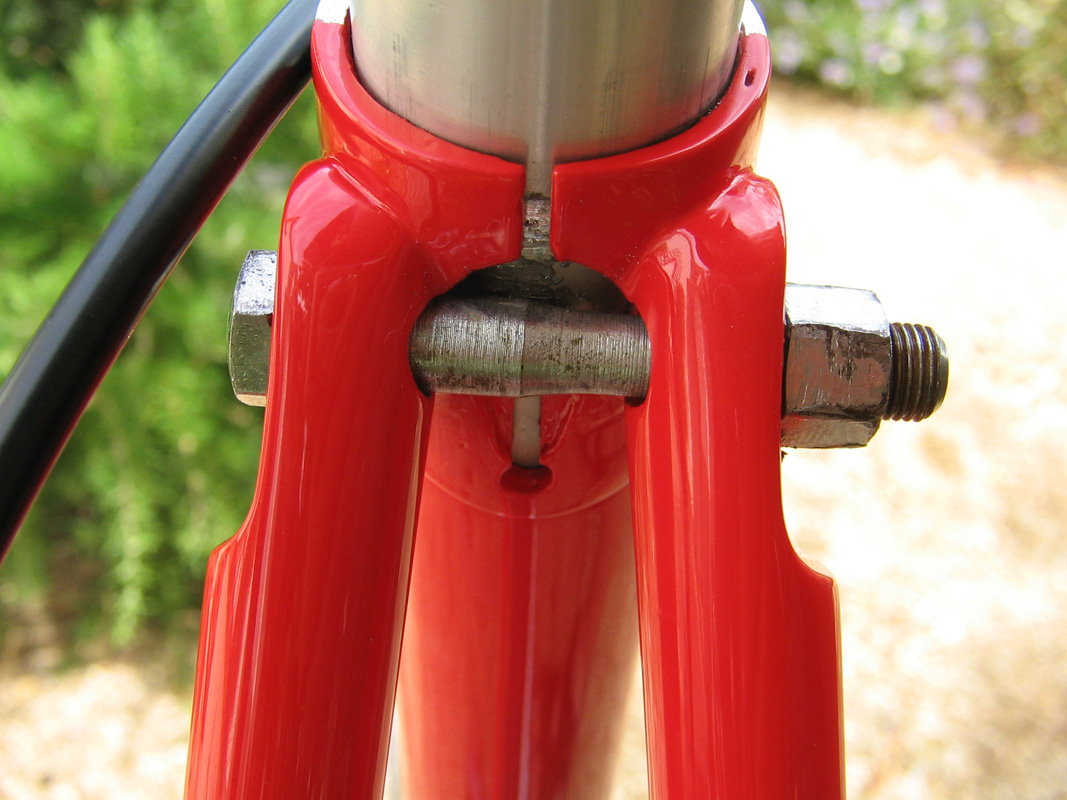

JB's pinstripe detail on the drive side chainstay. Note also the chainstay bridge, tapped for fender mounting.

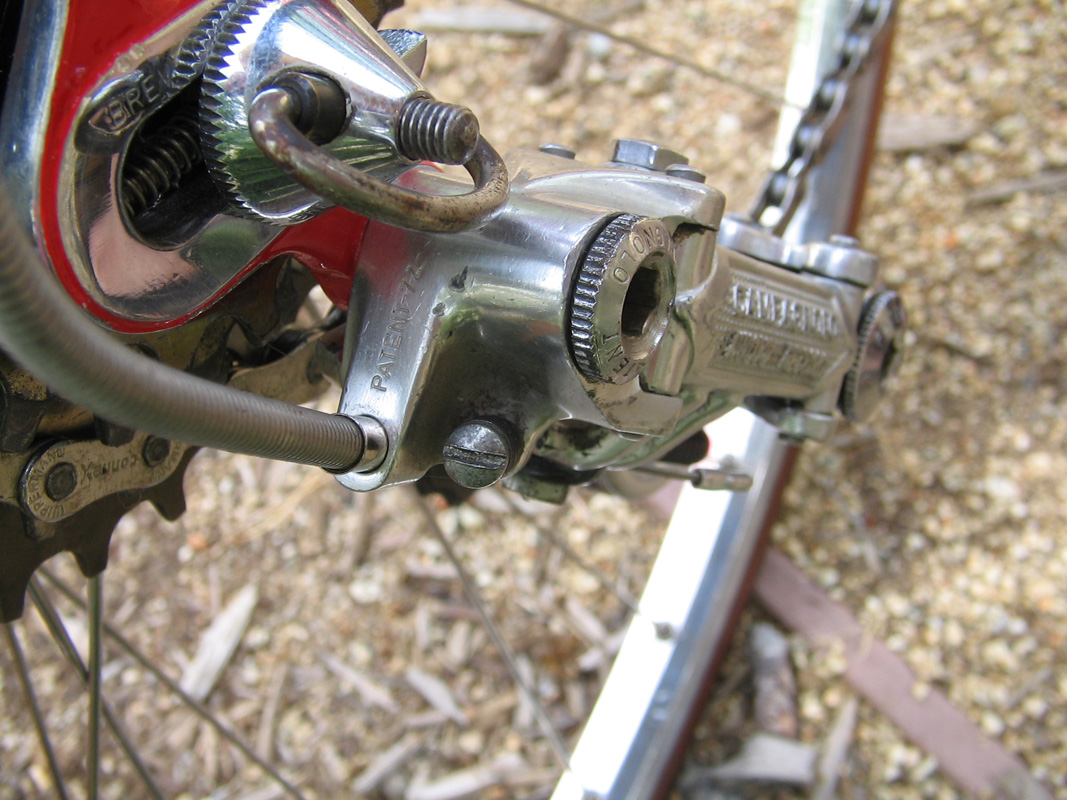

Proper "Patent 72" rear derailleur

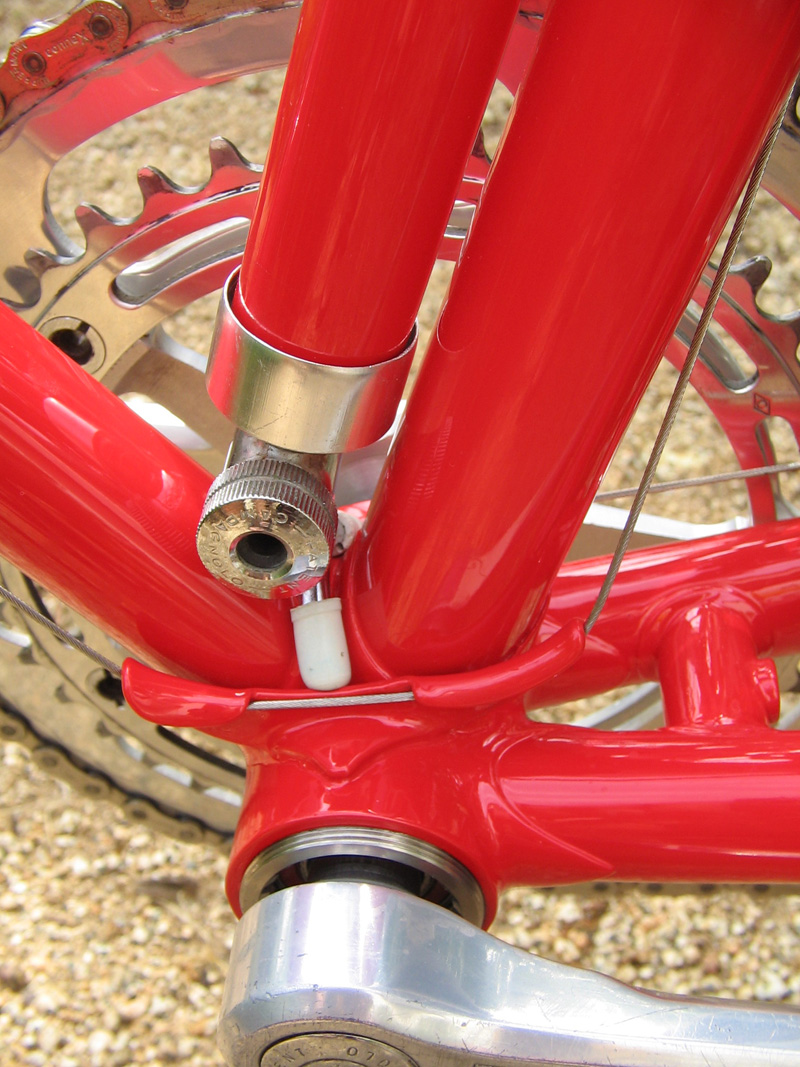

Original binder bolt (At least, it's the one that came with the frame and it loooks original. The center part has been machined away, as was done with Cinelli's binder bolts)

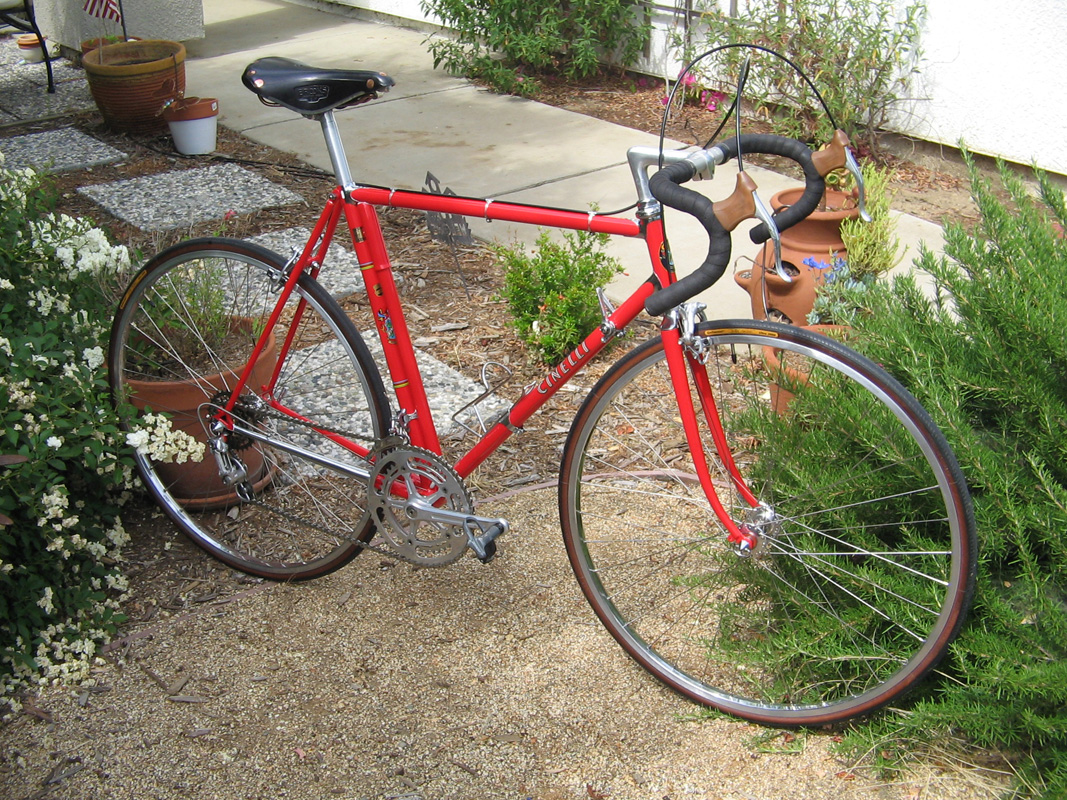

Another shot of the completed bike

Component details:

Cranks: Nuovo Record
Front derailleur: Nuovo Record clamp-on (proper pre-CPSC no-lip vintage)
Rear derailleur: Nuovo Record (Patent 72)
Brakes: Record (flat quick release levers)
Lever hoods: Dia Compe (we'll find some Campy hoods later)
Shift levers: Record clamp-on
Bottom bracket: Phil Wood
Hubs: Phil Wood (original 1971/72 production)
Rims: Sun CR-18 (not period correct, but they look very appropriate to the bike)
Quick release levers: Record straight levers
Bars/stem: Cinelli Campione del Mondo (not period correct,  but safer to ride than 70s-era bars)
Bottle cage: TA clamp-on (NOS)
Pump: Silca, with Campagnolo steel head
Seatpost: SR (non-Campy, but a very nice copy of a Nuovo Record post)
Saddle: Brooks B17 Champion Special
Headset: Nuovo Record steel
Tires: Continental
All cables and housings: Campagnolo

Photos of another very nice 1972 Cinelli Speciale Corsa are online at http://www.theracingbicycle.com/Cinelli.html We note at least one difference between that frame and ours--theirs lacks fender braze-ons on the dropouts.  We guess that since ours was a special order frame, that Frankie (the original owner) probably asked to have them installed.
