January 23, 2003--At long last . . . photos of the completely built Campy Only Sachs!  Click on any image for a larger version.  Click here for specs

The Campy Only Sachs
Front view
Front view detail. We had to modify the mount on the Sigma computer to fit on the oversized bars.
Brake bridge and the back side of our Record "differential" (side pull) rear brake.
Painted cutout on the derailleur hanger is barely visible
Check the inside of the fork blades--more cutouts and color
Deda Newton bar and stem
Official Sachs-model seat by Selle Royale
Seat bag features the flags of the USA and Italy
Wheels by a local builder feature retro-flavored tying and soldering
The guy behind you is left with no doubt and the bike you're on.

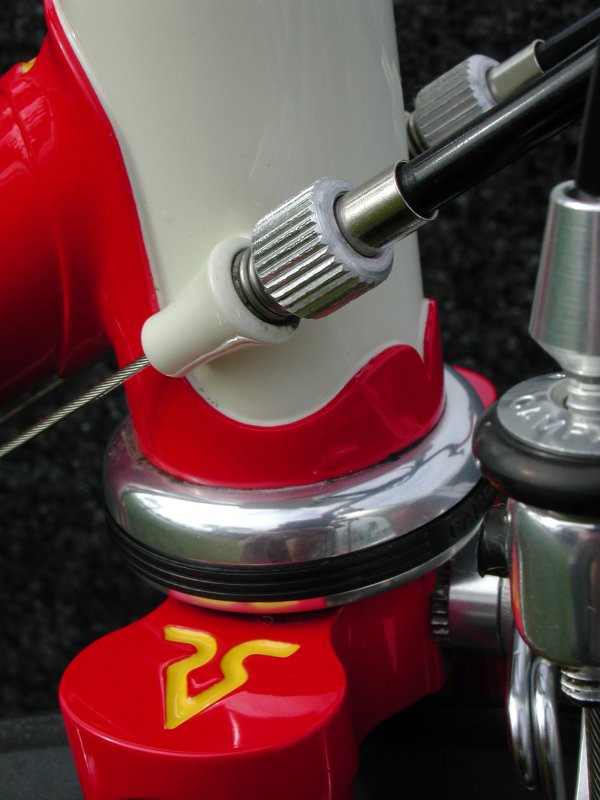

Cable stops on the head tube are much cleaner than down tube mounting.
Masking runs exactly down the middle of the lug's edge. Amazing.
Official Richard Sachs bar tape!
Carbon cap on the threadless Record headset.
Seat cluster includes a Campagnolo binder bolt, of course.
Sach's tribute to his home town.
Lots of Cool Bikes in the Retro Gallery and Mod Gallery


richardsachs

Paint by Joe Bell
JB put this retro Campy decal on for us.
Sachs dropouts get highlight treatment from Joe Bell.

Put this image on your desktop!
Use the links below to download wallpaper for your Windows computer:
1024x768
800x600

Right-click on the links above and save the file to your /Windows folder. Then right-click on your desktop and select the new file as your wallpaper.


Email Us


Joe Bell

Specs

Cranks: Record Alloy, 53/39, 175mm arms
Bottom bracket: Record
Front Der: Record
Rear Der: Record carbon, 9-speed
Brakes: Record differential
Levers: Record carbon, 9-speed
Cables: Campagnolo
Headset: Record threadless
Seatpost: Chorus titanium
Seat: Selle San Marco "Due," in Richard Sachs colors  Available from Richard Sachs: (860) 526-2059
Bar/Stem: Deda Newton, wrapped with Richard Sachs logo tape Tape available from Richard Sachs: (860) 526-2059
Hubs: Record
Rims: Mavic Open Pro, laced 1x front, 3x/2x rear.  Drive side spokes on rear wheel tied and soldered
Cages: Elite stainless steel
Computer: Sigma Sport BC-1400 wireless
